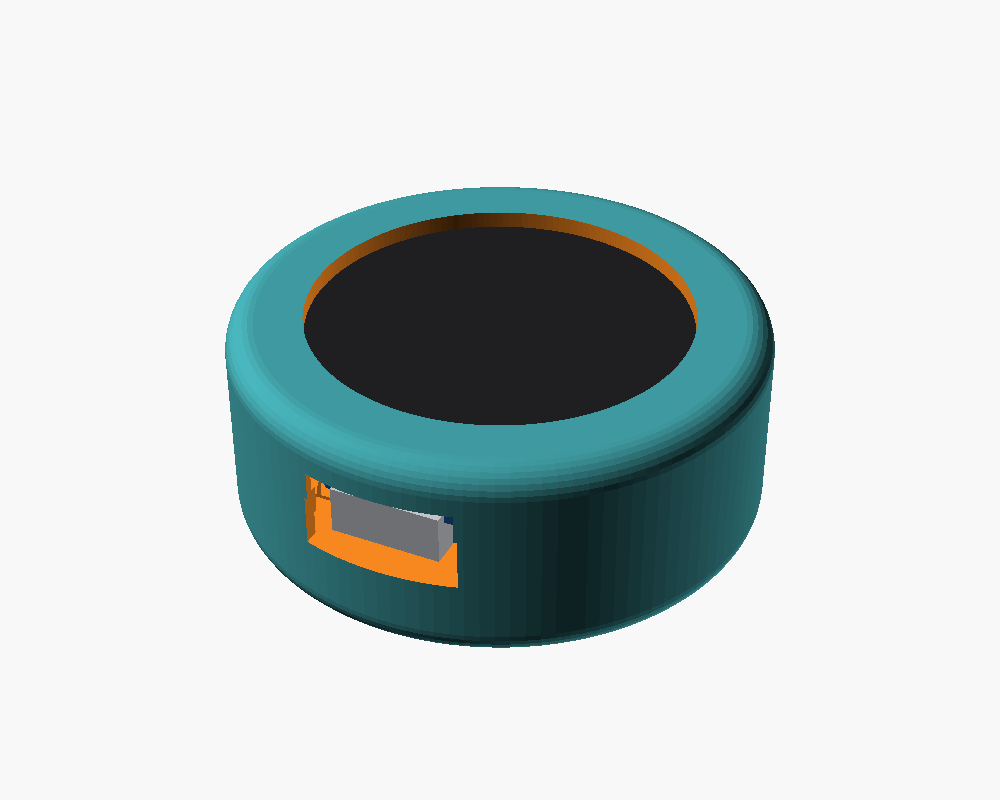

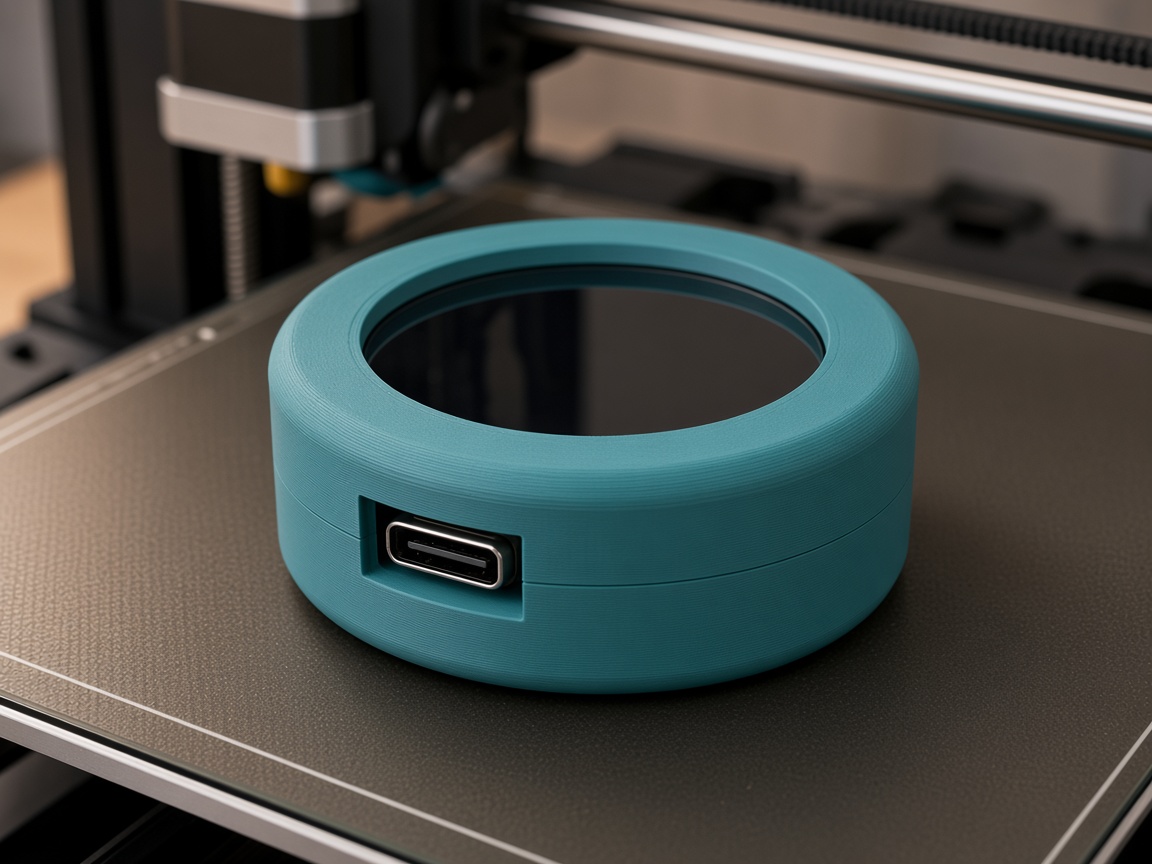

Desk Pal conference badge

name Ada Lovelace
title Engineer
flip
status

handle = "@";
for each character c in firstName + lastName:
    if c is A-Z: append lowercase
    if c is a-z or 0-9: append it
    // spaces, hyphens, emoji: skip

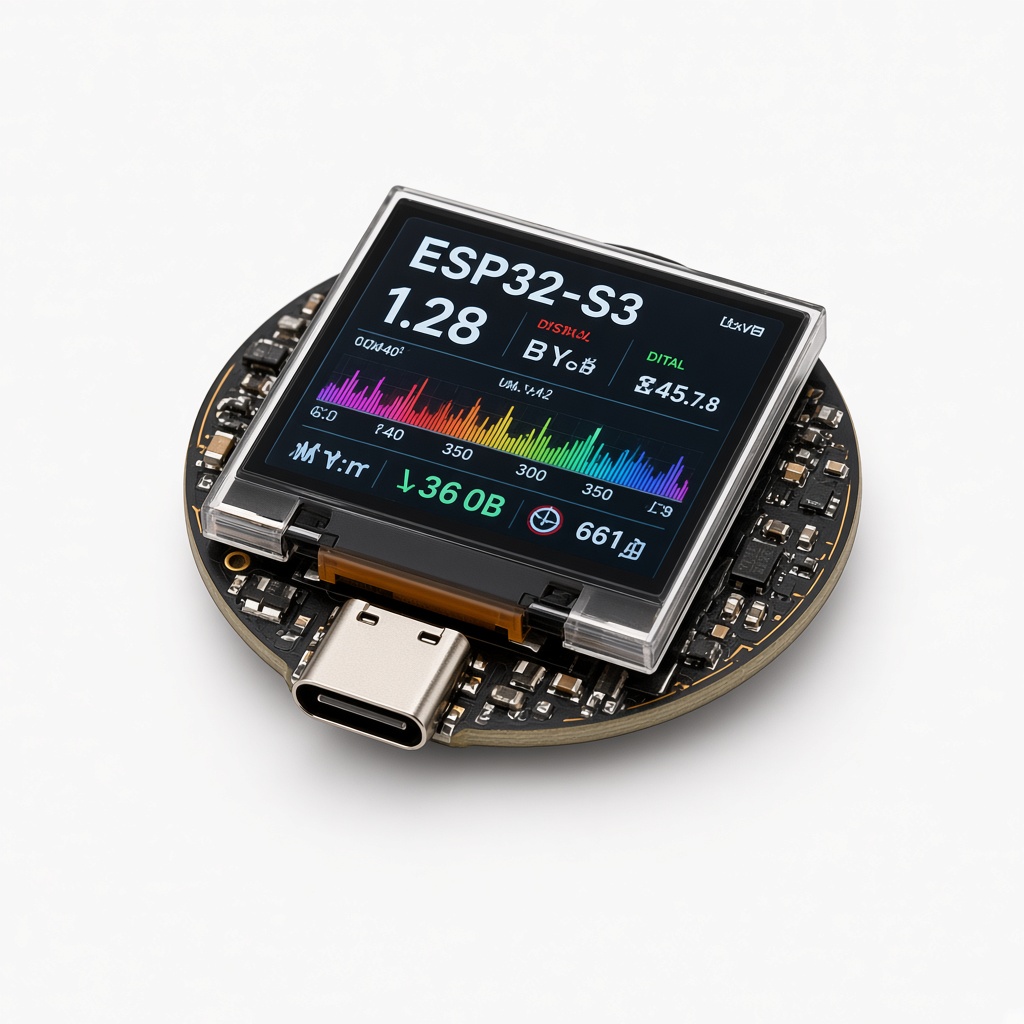

// Conference / name badge for Waveshare ESP32-S3-Touch-LCD-1.28
// 1.28" round GC9A01, CST816S touch, QMI8658 IMU, LiPo charger + GPIO1 battery ADC
// (Amazon B0CM68M8LR). 200k/100k divider: V = 3.3 / 4096 * 3 * adc.
//
// Face A: large first name, smaller last name, title, battery pip.
// Face B: tap to flip — QR-like mark, @handle, battery %, "SAY HI".
// Edit on device is Serial-only (no long-press editor):
//   name Ada Lovelace
//   title Engineer
// Persist in Preferences. Soft idle: slow breathing ring + orbit dots.
//
// Serial 115200: name, title, flip, status, help
// Screen stays USB-down (no IMU auto-rotate). Tap still flips the face.
//
// Arduino IDE: ESP32S3 Dev Module, OPI PSRAM, 16MB flash, USB CDC On Boot.
// TFT_eSPI: apply board-sketches/conference-badge/firmware/TFT_eSPI_Setup.h
// Flash:    cd board-sketches/conference-badge/firmware && pio run -t upload
// Sim:      python .cursor/skills/board-firmware-sim/scripts/serve_sim.py board-sketches/conference-badge

#include <Arduino.h>
#include <Wire.h>
#include <TFT_eSPI.h>
#include <Preferences.h>
#include <math.h>
#include "../../../shared/s3_puck_pins.h"

#ifndef DEFAULT_NAME
#define DEFAULT_NAME "Ada Lovelace"
#endif
#ifndef DEFAULT_TITLE
#define DEFAULT_TITLE "Engineer"
#endif

static const uint32_t BADGE_NAME_MAX = 40;
static const uint32_t TITLE_MAX = 32;
static const uint32_t FLIP_LOCK_MS = 280;
static const uint32_t BAT_PERIOD_MS = 1500;
static const float BAT_V_EMPTY = 3.30f;
static const float BAT_V_FULL = 4.20f;
static const float BAT_V_PRESENT = 2.80f;
static const float BREATH_SEC = 3.6f;

// Flip these if touch coordinates feel mirrored on the real board.
static const bool TOUCH_FLIP_X = false;
static const bool TOUCH_FLIP_Y = false;

TFT_eSPI tft;
TFT_eSprite spr(&tft);
Preferences prefs;

static String fullName;
static String title;
static String firstName;
static String lastName;
static String handle;

static bool faceB = false;
static bool touchOk = false;
static uint8_t imuAddr = 0;
static bool imuOk = false;
static volatile bool touchIrq = false;
static bool fingerDown = false;
static bool longPressFired = false;
static int16_t touchX = 0, touchY = 0, touchX0 = 0, touchY0 = 0;
static uint32_t fingerDownAt = 0;
static uint32_t flipLockUntil = 0;

static int batAdc = 0;
static float batteryV = 0;
static int batteryPct = 0;
static bool batteryPresent = false;
static uint32_t nextBatteryAt = 0;

static String serialLine;

static uint16_t col(uint8_t r, uint8_t g, uint8_t b) { return spr.color565(r, g, b); }

static uint16_t COL_BG;
static uint16_t COL_FIELD;
static uint16_t COL_INK;
static uint16_t COL_DIM;
static uint16_t COL_GOLD;
static uint16_t COL_RED;
static uint16_t COL_OK;

static void initColors() {
  COL_BG = col(8, 12, 22);
  COL_FIELD = col(12, 20, 40);
  COL_INK = col(246, 241, 232);
  COL_DIM = col(148, 156, 176);
  COL_GOLD = col(255, 194, 74);
  COL_RED = col(220, 56, 56);
  COL_OK = col(64, 196, 120);
}

static void splitName(const String &full) {
  String s = full;
  s.trim();
  const int sp = s.indexOf(' ');
  if (sp < 0) {
    firstName = s;
    lastName = "";
  } else {
    firstName = s.substring(0, sp);
    lastName = s.substring(sp + 1);
    firstName.trim();
    lastName.trim();
  }
}

static void rebuildHandle() {
  String raw = firstName + lastName;
  handle = "@";
  for (unsigned i = 0; i < raw.length() && handle.length() < 18; i++) {
    const char c = raw[i];
    if (c >= 'A' && c <= 'Z') handle += (char)(c - 'A' + 'a');
    else if ((c >= 'a' && c <= 'z') || (c >= '0' && c <= '9')) handle += c;
  }
  if (handle.length() < 2) handle = "@hi";
}

static void persist() {
  prefs.putString("name", fullName);
  prefs.putString("title", title);
}

static void applyName(const String &value, bool save) {
  fullName = value;
  fullName.trim();
  if (fullName.length() > (int)BADGE_NAME_MAX) fullName = fullName.substring(0, BADGE_NAME_MAX);
  if (!fullName.length()) fullName = DEFAULT_NAME;
  splitName(fullName);
  rebuildHandle();
  if (save) persist();
}

static void applyTitle(const String &value, bool save) {
  title = value;
  title.trim();
  if (title.length() > (int)TITLE_MAX) title = title.substring(0, TITLE_MAX);
  if (save) persist();
}

static void flipFace() {
  faceB = !faceB;
  flipLockUntil = millis() + FLIP_LOCK_MS;
}

static int batPercentFromV(float v) {
  float p = (v - BAT_V_EMPTY) * (100.0f / (BAT_V_FULL - BAT_V_EMPTY));
  if (p < 0) p = 0;
  if (p > 100) p = 100;
  return (int)(p + 0.5f);
}

static void updateBattery(uint32_t now) {
  if ((int32_t)(now - nextBatteryAt) < 0) return;
  nextBatteryAt = now + BAT_PERIOD_MS;
  batAdc = analogRead(S3_BAT_ADC_PIN);
  const float v = 3.3f / (float)(1 << 12) * 3.0f * (float)batAdc;
  batteryV = batteryV == 0 ? v : (batteryV * 0.7f + v * 0.3f);
  batteryPresent = batteryV >= BAT_V_PRESENT;
  batteryPct = batteryPresent ? batPercentFromV(batteryV) : 0;
}

// ---------------------------------------------------------------------- IMU
static bool imuWrite(uint8_t reg, uint8_t val) {
  Wire.beginTransmission(imuAddr);
  Wire.write(reg);
  Wire.write(val);
  return Wire.endTransmission() == 0;
}

static bool imuReadBytes(uint8_t reg, uint8_t *buf, uint8_t n) {
  Wire.beginTransmission(imuAddr);
  Wire.write(reg);
  if (Wire.endTransmission(false) != 0) return false;
  if (Wire.requestFrom((int)imuAddr, (int)n) != n) return false;
  for (uint8_t i = 0; i < n; i++) buf[i] = Wire.read();
  return true;
}

static bool imuProbe(uint8_t addr) {
  imuAddr = addr;
  uint8_t id = 0;
  if (!imuReadBytes(S3_QMI_WHO_AM_I, &id, 1)) return false;
  return id == S3_QMI_ID;
}

static bool imuBegin() {
  if (!imuProbe(0x6B) && !imuProbe(0x6A)) {
    imuAddr = 0;
    return false;
  }
  imuWrite(S3_QMI_CTRL1, 0x60);  // auto-increment
  imuWrite(S3_QMI_CTRL2, 0x23);  // ±8g
  imuWrite(S3_QMI_CTRL3, 0x43);  // ±256 dps
  imuWrite(S3_QMI_CTRL7, 0x03);  // accel + gyro on
  delay(20);
  return true;
}

// ------------------------------------------------------------------- touch
static void touchReset() {
  pinMode(S3_TP_RST_PIN, OUTPUT);
  pinMode(S3_TP_INT_PIN, INPUT_PULLUP);
  digitalWrite(S3_TP_RST_PIN, LOW);
  delay(12);
  digitalWrite(S3_TP_RST_PIN, HIGH);
  delay(80);
}

static bool touchWrite(uint8_t reg, uint8_t val) {
  Wire.beginTransmission(S3_CST816S_ADDR);
  Wire.write(reg);
  Wire.write(val);
  return Wire.endTransmission() == 0;
}

static bool touchBegin() {
  Wire.beginTransmission(S3_CST816S_ADDR);
  Wire.write(0xA7);
  if (Wire.endTransmission(false) != 0) return false;
  if (Wire.requestFrom((int)S3_CST816S_ADDR, 1) != 1) return false;
  Wire.read();
  touchWrite(0xFE, 0x01);
  touchWrite(0xFA, 0x60);
  return true;
}

static bool readTouch(uint8_t *fingers, int16_t *x, int16_t *y) {
  Wire.beginTransmission(S3_CST816S_ADDR);
  Wire.write(0x02);
  if (Wire.endTransmission(false) != 0) return false;
  if (Wire.requestFrom((int)S3_CST816S_ADDR, 5) < 5) return false;
  *fingers = Wire.read() & 0x0F;
  const uint8_t xh = Wire.read();
  const uint8_t xl = Wire.read();
  const uint8_t yh = Wire.read();
  const uint8_t yl = Wire.read();
  int16_t px = ((xh & 0x0F) << 8) | xl;
  int16_t py = ((yh & 0x0F) << 8) | yl;
  if (TOUCH_FLIP_X) px = S3_LCD_SIZE - 1 - px;
  if (TOUCH_FLIP_Y) py = S3_LCD_SIZE - 1 - py;
  *x = px;
  *y = py;
  return true;
}

static void IRAM_ATTR onTouchIrq() { touchIrq = true; }

static void onTap() {
  if ((int32_t)(millis() - flipLockUntil) < 0) return;
  flipFace();
}

static void handleTouch(uint32_t now) {
  if (!touchOk) return;
  const bool irq = touchIrq || digitalRead(S3_TP_INT_PIN) == LOW;
  touchIrq = false;
  if (!irq && !fingerDown) return;

  uint8_t fingers = 0;
  int16_t x = 0, y = 0;
  const bool ok = readTouch(&fingers, &x, &y);
  const bool down = ok && fingers > 0;

  if (down) {
    touchX = x;
    touchY = y;
    if (!fingerDown) {
      fingerDown = true;
      fingerDownAt = now;
      touchX0 = x;
      touchY0 = y;
      longPressFired = false;
    } else if (!longPressFired && (now - fingerDownAt) > 700 &&
               abs(x - touchX0) < 24 && abs(y - touchY0) < 24) {
      // Long-press is intentionally a no-op — edit via Serial / #defines.
      longPressFired = true;
    }
    return;
  }

  if (fingerDown) {
    fingerDown = false;
    if (longPressFired) return;
    const int16_t dx = touchX - touchX0;
    const int16_t dy = touchY - touchY0;
    if (abs(dx) <= 40 && abs(dy) <= 40 && (now - fingerDownAt) < 600) onTap();
  }
}

// ------------------------------------------------------------------- draw
static int fitSize(const String &text, uint8_t font, uint8_t maxSize, int maxW) {
  for (int s = maxSize; s >= 1; s--) {
    spr.setTextFont(font);
    spr.setTextSize(s);
    if (spr.textWidth(text) <= maxW) return s;
  }
  return 1;
}

static int drawFitted(const String &text, int x, int y, uint8_t font, uint8_t maxSize, int maxW,
                      uint16_t color) {
  if (!text.length()) return 0;
  const int s = fitSize(text, font, maxSize, maxW);
  spr.setTextFont(font);
  spr.setTextSize(s);
  spr.setTextDatum(MC_DATUM);
  spr.setTextColor(color);
  spr.drawString(text, x, y);
  return s;
}

static uint32_t hashName() {
  uint32_t h = 2166136261u;
  for (unsigned i = 0; i < fullName.length(); i++) {
    h ^= (uint8_t)fullName[i];
    h *= 16777619u;
  }
  for (unsigned i = 0; i < title.length(); i++) {
    h ^= (uint8_t)title[i];
    h *= 16777619u;
  }
  return h;
}

static bool inFinder(int x, int y, int ox, int oy) {
  return x >= ox && x < ox + 5 && y >= oy && y < oy + 5;
}

static bool finderOn(int x, int y, int ox, int oy) {
  const int lx = x - ox;
  const int ly = y - oy;
  const int ring = (lx == 0 || lx == 4 || ly == 0 || ly == 4);
  const int core = (lx >= 2 && lx <= 2 && ly >= 2 && ly <= 2);
  return ring || core;
}

static bool qrModule(int x, int y, uint32_t h) {
  if (inFinder(x, y, 0, 0)) return finderOn(x, y, 0, 0);
  if (inFinder(x, y, 8, 0)) return finderOn(x, y, 8, 0);
  if (inFinder(x, y, 0, 8)) return finderOn(x, y, 0, 8);
  if ((y == 6 && x < 8) || (x == 6 && y < 8)) return (x + y) & 1;
  uint32_t v = h ^ (uint32_t)(x * 131 + y * 17);
  v *= 16777619u;
  return ((v >> 24) & 1) != 0;
}

static void drawQr(int cx, int cy, uint16_t ink, uint16_t paper) {
  const int n = 13;
  const int cell = 6;
  const int side = n * cell;
  const int x0 = cx - side / 2;
  const int y0 = cy - side / 2;
  spr.fillRoundRect(x0 - 6, y0 - 6, side + 12, side + 12, 6, ink);
  spr.fillRoundRect(x0 - 3, y0 - 3, side + 6, side + 6, 4, paper);
  const uint32_t h = hashName();
  for (int y = 0; y < n; y++) {
    for (int x = 0; x < n; x++) {
      if (qrModule(x, y, h)) {
        spr.fillRect(x0 + x * cell, y0 + y * cell, cell - 1, cell - 1, ink);
      }
    }
  }
}

static void drawBreathRing(uint32_t now) {
  const float t = now / 1000.0f;
  const float s = 0.5f + 0.5f * sinf(t * (2.0f * 3.14159265f / BREATH_SEC));
  const uint8_t r = (uint8_t)(190 + s * 65);
  const uint8_t g = (uint8_t)(130 + s * 60);
  const uint8_t b = (uint8_t)(28 + s * 28);
  const uint16_t c = col(r, g, b);
  const int thick = 3 + (int)(s * 2.5f);
  for (int i = 0; i < thick; i++) spr.drawCircle(120, 120, 116 - i, c);

  for (int i = 0; i < 3; i++) {
    const float ang = t * 0.55f + i * (2.0f * 3.14159265f / 3.0f);
    const int x = 120 + (int)(cosf(ang) * 110.0f);
    const int y = 120 + (int)(sinf(ang) * 110.0f);
    spr.fillCircle(x, y, 2, COL_GOLD);
  }
}

static void drawBatPip(int cx, int cy) {
  const int w = 34;
  const int h = 13;
  const uint16_t frame = COL_INK;
  const uint16_t fill = !batteryPresent ? COL_DIM : (batteryPct < 20 ? COL_RED : COL_GOLD);
  spr.drawRoundRect(cx - w / 2, cy - h / 2, w, h, 3, frame);
  spr.fillRect(cx + w / 2, cy - 3, 3, 6, frame);
  const int inner = batteryPresent ? ((w - 4) * batteryPct / 100) : (w - 4);
  if (inner > 0) {
    spr.fillRect(cx - w / 2 + 2, cy - h / 2 + 2, inner, h - 4, fill);
  }
}

static void drawFaceA() {
  String first = firstName;
  String last = lastName;
  first.toUpperCase();
  last.toUpperCase();

  const int firstSize = drawFitted(first, 120, 86, 2, 5, 188, COL_INK);
  if (last.length()) {
    int lastMax = firstSize > 1 ? firstSize - 1 : 1;
    if (lastMax > 3) lastMax = 3;
    drawFitted(last, 120, 132, 2, lastMax, 188, COL_INK);
  }

  spr.drawFastHLine(70, 154, 100, COL_GOLD);
  String t = title;
  t.toUpperCase();
  int titleMax = 2;
  if (firstSize <= 2) titleMax = 1;
  drawFitted(t, 120, 176, 2, titleMax, 176, COL_GOLD);
  drawBatPip(120, 208);
}

static void drawFaceB() {
  drawQr(120, 92, COL_INK, COL_FIELD);

  spr.setTextDatum(MC_DATUM);
  spr.setTextFont(2);
  spr.setTextSize(1);
  spr.setTextColor(COL_DIM);
  spr.drawString(handle, 120, 154);

  spr.setTextColor(batteryPresent ? (batteryPct < 20 ? COL_RED : COL_GOLD) : COL_DIM);
  spr.setTextSize(2);
  if (batteryPresent) {
    char buf[12];
    snprintf(buf, sizeof(buf), "%d%%", batteryPct);
    spr.drawString(buf, 120, 176);
  } else {
    spr.drawString("USB", 120, 176);
  }

  spr.setTextColor(COL_INK);
  spr.setTextSize(2);
  spr.drawString("SAY HI", 120, 206);
}

static void drawBadge(uint32_t now) {
  spr.fillSprite(TFT_BLACK);
  spr.fillCircle(120, 120, 120, COL_BG);
  spr.fillCircle(120, 120, 112, COL_FIELD);
  if (faceB) drawFaceB();
  else drawFaceA();
  drawBreathRing(now);
  spr.pushSprite(0, 0);
}

// ------------------------------------------------------------------ serial
static void printStatus() {
  char batBuf[12];
  if (batteryPresent) snprintf(batBuf, sizeof(batBuf), "%d%%", batteryPct);
  else snprintf(batBuf, sizeof(batBuf), "USB");
  Serial.printf("face=%s name=\"%s\" title=\"%s\" handle=%s bat=%.2fV %s adc=%d touch=%d imu=%d\n",
                faceB ? "B" : "A", fullName.c_str(), title.c_str(), handle.c_str(), batteryV, batBuf,
                batAdc, touchOk ? 1 : 0, imuOk ? 1 : 0);
}

static void printHelp() {
  Serial.println("name <first last> | title <text> | flip | status | help");
  Serial.println("name Ada Lovelace");
  Serial.println("title Engineer");
}

static void handleSerial() {
  while (Serial.available()) {
    const char c = (char)Serial.read();
    if (c == '\r') continue;
    if (c != '\n') {
      if (serialLine.length() < 96) serialLine += c;
      continue;
    }
    serialLine.trim();
    if (serialLine.length()) {
      const int sp = serialLine.indexOf(' ');
      String cmd = sp < 0 ? serialLine : serialLine.substring(0, sp);
      String arg = sp < 0 ? "" : serialLine.substring(sp + 1);
      cmd.toLowerCase();
      arg.trim();
      if (cmd == "name") {
        if (!arg.length()) Serial.println("usage: name Ada Lovelace");
        else {
          applyName(arg, true);
          Serial.printf("name=%s handle=%s\n", fullName.c_str(), handle.c_str());
        }
      } else if (cmd == "title") {
        if (!arg.length()) Serial.println("usage: title Engineer");
        else {
          applyTitle(arg, true);
          Serial.printf("title=%s\n", title.c_str());
        }
      } else if (cmd == "flip") {
        flipFace();
        Serial.printf("face=%s\n", faceB ? "B" : "A");
      } else if (cmd == "status") {
        printStatus();
      } else if (cmd == "help") {
        printHelp();
      } else {
        Serial.println("? (try help)");
      }
    }
    serialLine = "";
  }
}

void setup() {
  Serial.begin(115200);
  pinMode(S3_LCD_BL_PIN, OUTPUT);
  digitalWrite(S3_LCD_BL_PIN, HIGH);

  tft.init();
  tft.setRotation(0);
  tft.fillScreen(TFT_BLACK);

  spr.setColorDepth(16);
  if (spr.createSprite(S3_LCD_SIZE, S3_LCD_SIZE) == nullptr) {
    Serial.println("sprite alloc failed");
    while (true) delay(1000);
  }
  initColors();

  Wire.begin(S3_I2C_SDA_PIN, S3_I2C_SCL_PIN);
  Wire.setClock(400000);
  touchReset();
  touchOk = touchBegin();
  if (touchOk) attachInterrupt(digitalPinToInterrupt(S3_TP_INT_PIN), onTouchIrq, FALLING);
  imuOk = imuBegin();

  analogReadResolution(12);
  analogSetPinAttenuation(S3_BAT_ADC_PIN, ADC_11db);

  prefs.begin("badge", false);
  applyName(prefs.getString("name", DEFAULT_NAME), false);
  applyTitle(prefs.getString("title", DEFAULT_TITLE), false);

  nextBatteryAt = 0;
  updateBattery(millis());

  Serial.println(touchOk ? "CST816S ready" : "CST816S not found — tap via Serial flip");
  Serial.println(imuOk ? "QMI8658 ready" : "QMI8658 not found");
  Serial.printf("badge ready  name=%s  title=%s  (type help)\n", fullName.c_str(), title.c_str());
}

void loop() {
  const uint32_t now = millis();
  handleSerial();
  handleTouch(now);
  updateBattery(now);
  drawBadge(now);
  delay(33);
}
